This single-storey residential project in Riverlea Park, SA was developed using a full steel frame system, designed for structural accuracy and efficient on-site installation.

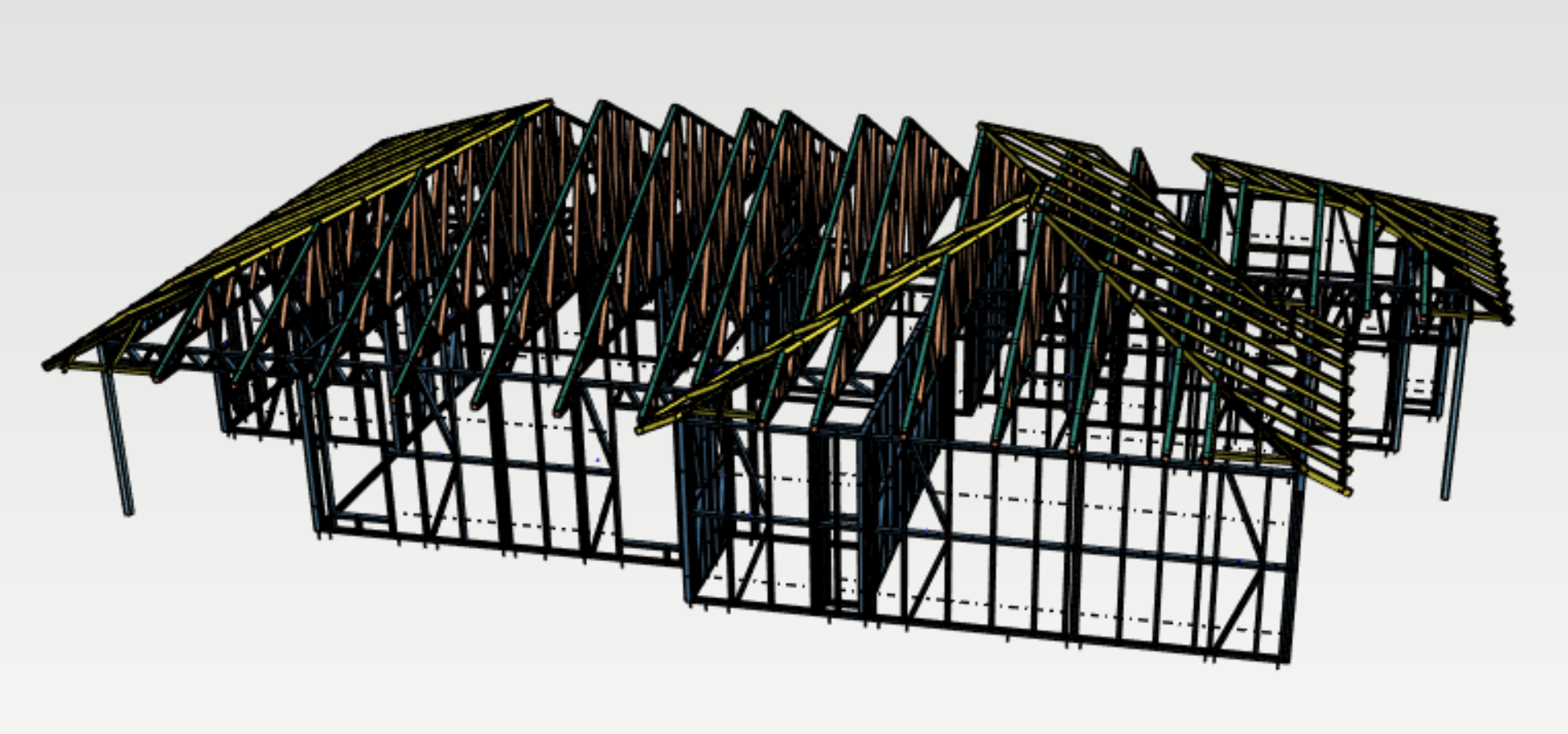

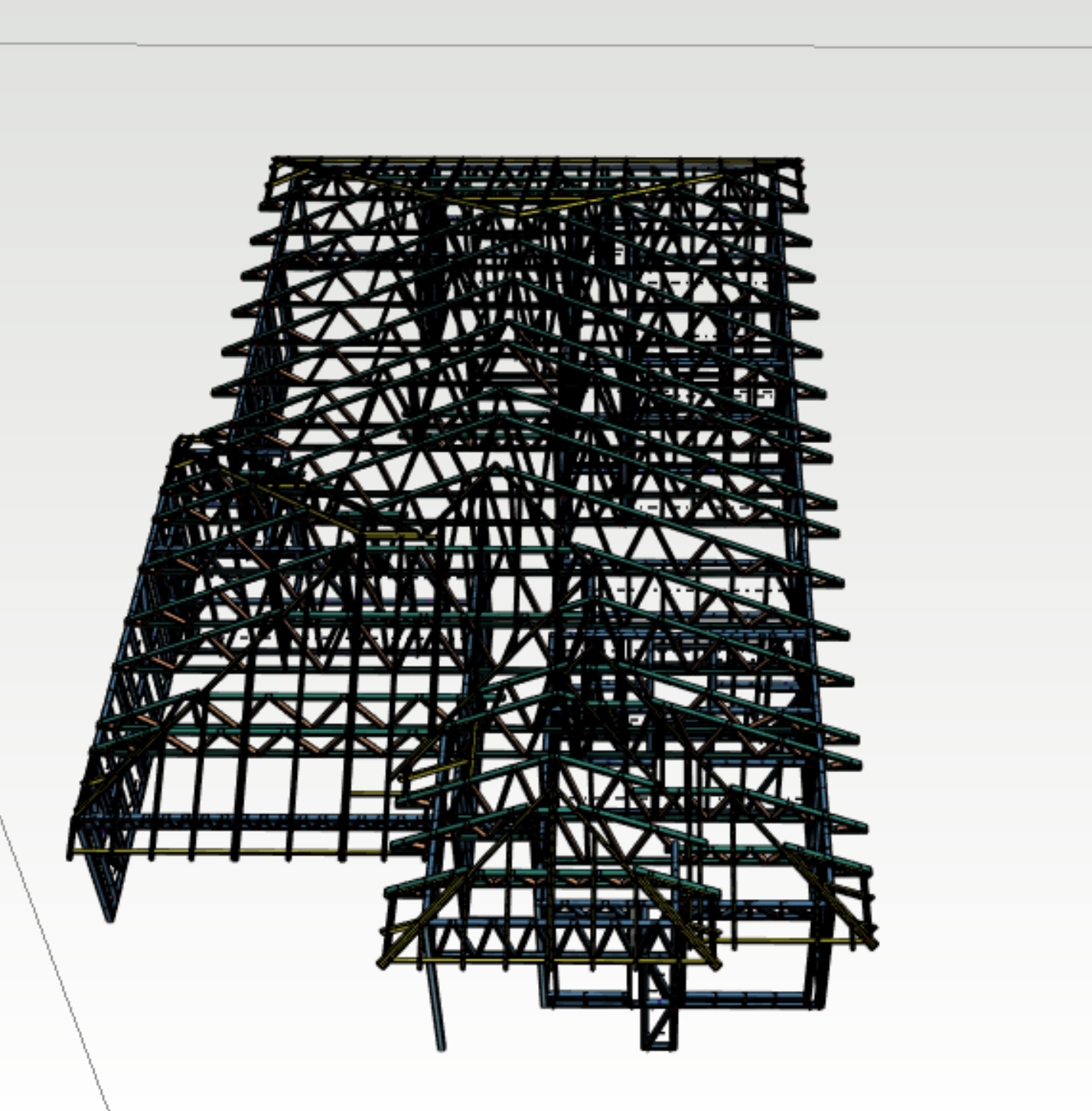

BuildSketch Drafting was engaged by the steel frame manufacturer to deliver complete documentation, including detailed layouts, shop drawings, and CNC-ready production files generated through Vertex BD. Our team ensured the framing design aligned seamlessly with both engineering and architectural requirements.
Leveraging our industry experience, BuildSketch Drafting provided a value-engineered design that improved structural performance while optimising material efficiency.
We worked collaboratively with the architectural drafting team to adjust design elements and coordinate changes that benefited both the builder and manufacturer. This proactive approach helped minimise potential on-site challenges and ensured the framing system met all project and compliance standards.
The documentation was finalised and certified within the committed timeline. Fabrication and installation were completed smoothly, with high-quality workmanship and no reported site issues — reinforcing the precision and practicality of our detailing approach.
location
Adelaide, SA
Client
Steel Frame Manufacturer
software used
Vertex BD
project type
Residential – Standard Single-Storey House
